Making a color scheme looks the way it should be in Vim is notoriously cumbersome. Cut to the chase. I am going to share some tips with you on how to set the color scheme correct in Vim and Tmux.
First of all, use Neovim instead of Vim. Why? Neovim offers a much better support of True Color. If you want to stick with traditional Vim and invest your time on figuring out how True Color works, read this. If not, I strongly recommend you using Neovim not only because it is going to enlighten the speed quite a bit, but also because you are dealing with a more modern code base that maintained by a bunch of Vim enthusiasts. That means whenever you run into a problem and open an issue on their Github Page, the solution will likely be there right away. I have been using Neovim for more than half year, and I have been entirely happy with it.
Next, let's go get a good color scheme. Pick the color you like. I recommend dark themes(I am going to use Vim-One as an example). Now, we want to call the color scheme via Neovim plugin managers. I recommend Vim Plug. After this, you need the following lines in your
# Set the background theme to dark set background = "dark" # Call the theme one set colorscheme = "one"(one is the name of color scheme) # Don't forget set the airline theme as well. let g:airline_theme = 'one' # This line enables the true color support. let $NVIM_TUI_ENABLE_TRUE_COLOR=1 # Note, the above line is ignored in Neovim 0.1.5 above, use this line instead. set termguicolors
Now, source your
.vimrc. You should be able to see the changes immediately. If it doesn't work, probably means your Neovim is outdated. Run the following command to get the latest update of Neovim.
brew upgrade neovim
If it still doesn't work(most likely not happening when you are up-to-date on everything), run the following lines to force the color change in your terminal emulator(I use iTerm2). The following commands check the version of your Neovim and set the condition to toggle when your version not compatible. (This code snippet is from the README.md of vim-one).
"Use 24-bit (true-color) mode in Vim/Neovim when outside tmux. "If you're using tmux version 2.2 or later, you can remove the outermost $TMUX check and use tmux's 24-bit color support "(see < http://sunaku.github.io/tmux-24bit-color.html#usage > for more information.) if (empty($TMUX)) if (has("nvim")) "For Neovim 0.1.3 and 0.1.4 < https://github.com/neovim/neovim/pull/2198 > let $NVIM_TUI_ENABLE_TRUE_COLOR=1 endif "For Neovim > 0.1.5 and Vim > patch 7.4.1799 < https://github.com/vim/vim/commit/61be73bb0f965a895bfb064ea3e55476ac175162 > "Based on Vim patch 7.4.1770 (`guicolors` option) < https://github.com/vim/vim/commit/8a633e3427b47286869aa4b96f2bfc1fe65b25cd > " < https://github.com/neovim/neovim/wiki/Following-HEAD#20160511 > if (has("termguicolors")) set termguicolors endif endif
Now, you should have something looks like this:
As you see, the background color of Vim isn't synced up with iTerm background color. So, we will need to sync the Hex Values of both background colors manually. Feel free to use whatever tools you like. I use the eyedropper tool from Photoshop. Screenshot the image, then paste it in Photoshop. Hit the
i, shortcut of eyedropper tool, then select the color panel, copy the Hex Value of the color.
Now, open your iTerm, hit
, to open preference setting, go to Profile - Color - Background and paste the Hex Value there. All set.
Now, you Vim should look stunning as you expect it to be.
Certainly, that's not everything. If you use Vim, most likely you use Tmux as well. Let's get the Ture color working in Tmux. First, let's take a look what's going to happen if you don't have True Color enabled in Tmux.
Okay, let's get it working right. Check your Tmux version by running:
If it belows 2.3, run:
brew upgrade tmux
Now paste the following lines of code into your
.tmux.conf. (Thanks for the true color issue)
// only this line might not be enough set -g default-terminal "xterm-256color" // Needs this line also to overrides the default color set-option -ga terminal-overrides ",xterm-256color:Tc"

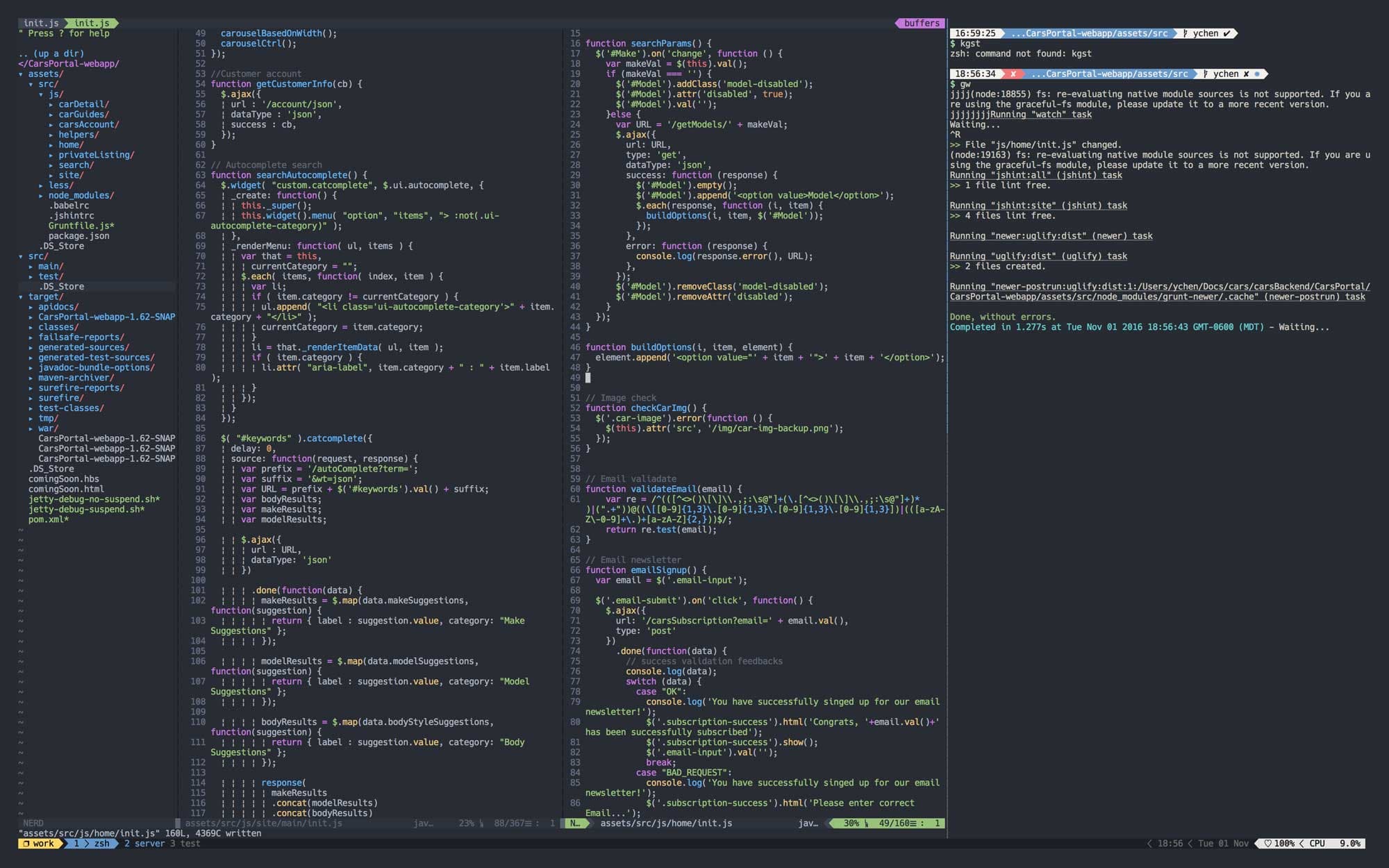

Source it, it should look like the lovely sceenshot below. If it doesn't work, you might want to run
tmux kill-server, then restart the Tmux. I recommend to use Tmux Resurrect to store your session history, now you can easily restore Tmux session by running
prefix, r, lovely.
Now, you have one of the best-looking Vims fully loaded out there. :)
I used to spend a lot of time on configuring my tools, making them look as good as possible. But spending too much time might be a crappy idea, that's not gonna help you be a better programmer in any way, so balance it well, don't work for the tool, use the tool.
